The VISERA ELITE Video Processor OTV-S190 brings out the full new scope performance. The Multi-platform system enables existing scopes to be used as well. Stabilized colour reproduction and image noise reduction improving image quality to the next level. The VISERA ELITE Video Processor OTV-S190 delivers vivid and true colour reproduction. With a new scope individual colour correction system, the OTV is able to adjust the colour reproduction of all connected scopes to the exact same level. Your images never looked more life like on a OR sreen.

• Key Benifits

  Ground- breaking resolving power for safe procedure

  Equipped with the next generation HD imaging capability to provide the best possible quality for flexible and rigid endoscopes. Enables comprehensive observation of different organs and tissue.

  Brighter, more powerful NBI

  Narrow Band Imaging now delivers significantly increased brightness and contrast. The light source filter configuration has been optimized to increase the brightness of the NBI light by 1.2 times. This enables the surgeon even to operate under NBI visualization.

  Outstanding, true-to-life image quality

  With 3D noise reduction the image quality of all new scopes and camera heads will tremendously improved.

• Product Details

  High Resolution

  Next generation HD supports all new 10mm multichip Video Laparoscopes as well as all new 3CCD camera heads with improved image processing circuit.

  Noise reduction function

  The processor can eliminate noise without causing quality deterioration. It compares each pixel in the previous frame instead of averaging all the pixels in one frame. Perfect picture clarity and resolution.

  Stabilized colour reproduction

  Colour variation between scopes is solved by an individual colour correction system. This colour correction technology is used in digital cameras developed by Olympus comsumer cameras, is now applied to medical use.

• Specifications

  Power supply	Voltage	100-240 V AC; within ±10%
  	Frequency	50/60 Hz; within ±3 Hz
  	Consumption electric power	150 VA
  Size	Dimensions(W x H x D)	370 x 85 x 455 mm (Standard) 383 x 91 x 489 mm (Maximum)
  	Weight	8.8 kg
  Classification (medical electrical equipment)	Type of protection against electric shock	Class I
  	Degree fo protection against electric shock of applied part	Depends on applied part. See also applied par (camera head or videoscope).
  	Degree of protection against explosion	The video system center should be kept away from flammable gases.

• Compatibility
  •

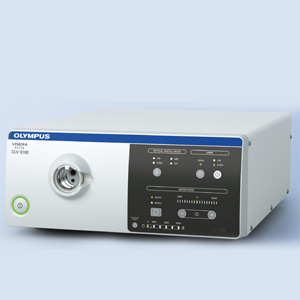

    VISERA ELITE Xenon Light SourceCLV-S190



    Brighter, more powerful Narrow Band Imaging
    Photo Dynamic Diagnosis

    Brochure
  •

    ENDOEYE FLEX HD 5mmLTF-S190-5

    5 mm HDTV
    Angulation (100 degrees)
    Focus-Free

    Brochure
  •

    Flexible Video CystoscopeCYF-VH



    High-Definition TV (HDTV)
    New Evolution Tip
    Narrow Band Imaging (NBI)

    Brochure
  •

    ULTRA TELESCOPESLaparoscopes HD 10mm



    Newly designed optical system
    New illumination design
    Improved durability

  •

    ULTRA TELESCOPESLaparoscopes HD 5mm



    Newly designed optical system
    New illumination design
    Improved durability

  •

    ENDOEYEENDOEYE HD II 10mm



    10 mm HDTV Multichip
    Fog-Free
    Focus-Free

  •

    ENDOEYEENDOEYE HD II 5mm



    5 mm HDTV
    Focus-Free
    NBI (Narrow Band Imaging)

    Brochure
