The GIF-EZ1500 video gastroscope offers full focus and high magnification for observational excellence.
Brochure-
EDOF Technology
Our unique Extended Depth of Field (EDOF) technology combines images captured in near view with those taken in far view to generate an image with a wider
depth of field that gives you greater clarity and richer detail throughout the image area, assuring superior observation with continuous wide focusing.
Full Focus
Thanks to EDOF technology, the GIF-EZ1500 can approach as close as 3 mm to the subject in normal focus mode, providing a clear, sharp view that may
reduce the need to adjust the focus in routine use.
High Magnification with the Ease of Dual Focus
The GIF-EZ1500 offers high magnification* when the Near Focus mode is engaged via a simple scope switch, supporting better observation of details. The
combination of high magnification and wide depth of field allows for clearer, more detailed imaging throughout the field of view, even from a tangential direction and regardless of whether the subject is moving or not. In combination with proven NBI technology, the GIF-EZ1500’s advanced optics is designed to assist
accurate, high-confidence optical diagnosis.
* Maximum magnification of 85x (with OEV262H) and 100x (with OEV321UH) -
Product Specifications
Optical System
Field of view
Normal focus mode: 140°
Near focus mode: 140°Direction of view
Forward viewing
Depth of field
Normal focus mode: 3-100mm
Near focus mode: 1.5-5.5mmInsertion Section
Distal end enlarged
Insertion tube outer diameter
ø 9.6 mm
Distal end outer diameter
ø 9.9 mm
Working length
1030 mm
Instrument Channel
Channel inner diameter
ø 2.8 mm
Minimum visible distance
3 mm (Normal focus mode)
Direction from which EndoTherapy accessories enter and exit the endoscopic image
Bending Section
Angulation range
Up 210°
Down 90°
Right 100°
Left 100°
Total Length
1350 mm
Compatible EVIS LUCERA ELITE System

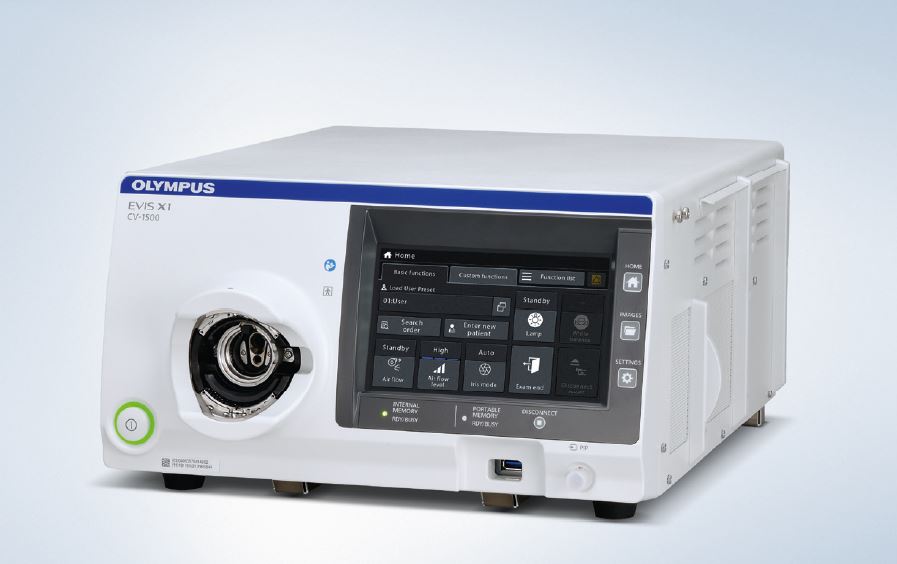

Video system center OLYMPUS CV-1500
-
-
CV-1500CV-1500
A Unified Platform with 5 LED Spectrum Technology
